Compact. Clean. Efficient.

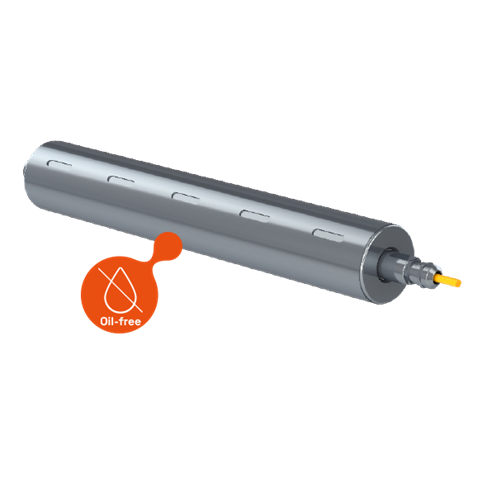

MTS82 Synchronous Drum motor

With a diameter of just 3.19 inches, the MTS82 is a compact, oil-free drum motor designed for hygienic environments and demanding conveyor applications.

Its fully enclosed, maintenance-free design integrates motor and transmission inside the drum, eliminating external components and contamination risks.

Powered by synchronous motor technology, the MTS82 delivers high torque even at low speeds, ensuring consistent performance with minimal energy consumption. It supports multi-speed dimensioning and precise positioning in sensorless operation and can be equipped with feedback systems for closed-loop control and indexing. Digital nameplate options enable plug-and-play installation for seamless integration.

Suitable for both standalone conveyors and high-precision machinery, the MTS82 handles low to mid-range loads with ease - making it a reliable choice for food production and automation systems.


Applications:

  • Food Production Lines: Hygienic conveyors for raw or packaged goods.
  • Automated Sorting Lines: Compact drives for high-speed sorting and inspection stations.
  • Check Weighing Systems: Precision-driven conveyors for compliance-critical operations.
  • Pharmaceutical Packaging: Compact drives for blister packs and precision filling systems.



Why choose MTS82:

  • Compact size with powerful performance
  • High torque at low speeds
  • Maintenance-free and oil-free for hygienic environments
  • Supports feedback and servo drive integration
  • Energy-efficient and easy to install
  • Technical specifications
  • Download center
Request offer
  • Technical specifications
    MTS82 Synchronous Drum Motor
    Diameter in 3.19
    Gear ratio   5 - 160
    Rotational Speed RPM 19 - 600
    Linear Speed Ft/s 0.3 - 8.5
    Torque Ft/lbf 3.5 - 32.5
    Power HP 3.5 - 32.5
    Min. shell length in 10.24 - 12.60
    Specifications

  • Download center

Related products

MTS62 Synchronous Drum motor
  • Diameter: 2.4 in
  • Gear ratio: 8 - 80
  • Rotational Speed: 56 - 563 RPM
  • Linear Speed: 0.6 - 5.9 Ft/s
  • Torque: 1.5 - 14 Ft/lbf
  • Power: 0.17 HP
Go to product
MTS82-0.25 Compact Synchronous Drum motor
  • Diameter: 3.19 in
  • Gear ratio: 5 - 40
  • Rotational Speed: 75 - 600 RPM
  • Linear Speed: 1.1 - 8.4 Ft/s
  • Torque: 2.1 - 17 Ft/lbf
  • Power: 0.25 HP
Go to product
MTS113 Synchronous Drum motor
  • Diameter: 4.41 in
  • Gear ratio: 8 - 160
  • Rotational Speed: 19 - 375 RPM
  • Linear Speed 0.4 - 7.3 Ft/s
  • Torque: 3.4 - 32.5 Ft/lbf
  • Power: 0.25 / 0.5 / 1.0 / 1.35 HP
Go to product
MTS115 Synchronous Drum motor
  • Diameter: 4.41 in
  • Gear ratio: 10 - 160
  • Rotational Speed: 19 - 300 RPM
  • Linear Speed 0.4 - 5.8 Ft/s
  • Torque: 16.2 - 88.5 Ft/lbf
  • Power: 1.0 / 1.35 HP
Go to product
MTS138 Synchronous Drum motor
  • Diameter: 5.35 in
  • Gear ratio: 10 - 160
  • Rotational Speed: 19 - 300 RPM
  • Linear Speed 0.5 - 7.2 Ft/s
  • Torque: 16 - 89 Ft/lbf
  • Power: 1.0 / 1.35 HP
Go to product
MTD138 Synchronous Drum motor
  • Diameter: 5.35 in
  • Gear ratio: 10 - 32
  • Rotational Speed: 75 - 300 RPM
  • Linear Speed 1.8 - 7.2 Ft/s
  • Torque: 28 - 89 Ft/lbf
  • Power: HP 2.0 HP
Go to product
