The World’s Smallest Oil-Free Drum Motor.

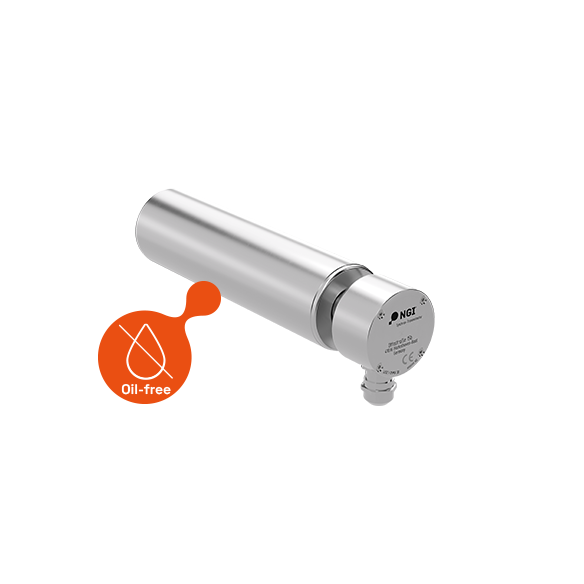

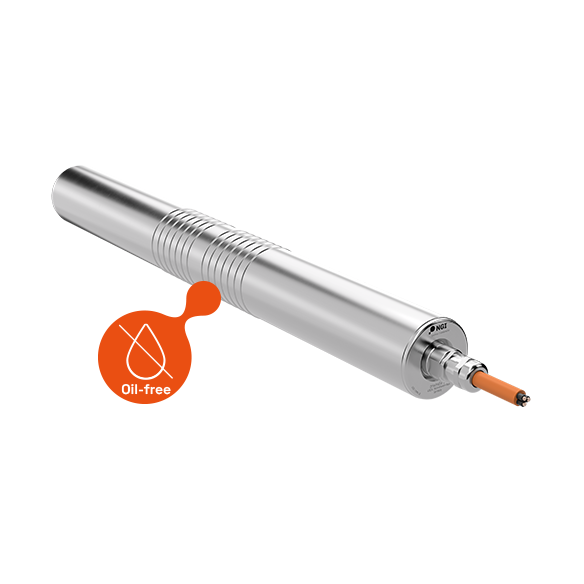

MTS62 Synchronous Drum motor

Small in size. Big on performance.

With a diameter of just 61 mm, the MTS62 is the most compact oil-free drum motor available today - engineered for hygiene, precision, and space-constrained applications where traditional drives fall short. Its fully sealed, maintenance-free design integrates motor and transmission inside the drum, eliminating external components and contamination risks.


Despite its slim profile, the MTS62 delivers consistent torque across all speeds thanks to advanced synchronous technology. It’s ideal for tight transfers, packaging lines, and inspection systems, offering reliable performance without compromising on control or footprint.


Designed for low-load, high-precision applications, it also supports optional servo-level feedback for enhanced positioning accuracy.


Applications:

  • Food Processing Systems: Tight transfers for small or delicate items, minimizing gaps and ensuring product integrity.
  • Packaging Machines: Space-efficient solutions for narrow conveyors in automated packaging systems.
  • Check Weighing & Inspection Systems: Precision-driven operations requiring compact, reliable drive solutions.




Why choose MTS62:

  • Slim size, high torque
  • Optional servo-level feedback
  • Maintenance-free and sealed for hygiene
  • 130 W continuous power
  • Technical specifications
  • Download center
Request offer
  • Technical specifications
    MTS82 Synchronous Drum Motor
    Diameter mm 61
    Gear ratio   8 - 80
    Rotational Speed RPM 56 - 563
    Linear Speed m/s 0,18 - 1,80
    Torque Nm 2,1 - 19
    Power kW 0,13
    Min. shell length mm 237 - 263
    Specifications

  • Download center

Related products

Umbraco.Core.Models.MediaWithCrops`1[Umbraco.Web.PublishedModels.Image]?.Value(
MTS82-0.19 Compact Synchronous Drum motor
  • Diameter: 81 mm
  • Gear ratio: 5 - 40
  • Rotational Speed: 75 - 600 RPM
  • Linear Speed: 0,32 - 2,54 m/s
  • Torque: 2,9 - 23 Nm
  • Power: 0,19 kW
Go to product
Umbraco.Core.Models.MediaWithCrops`1[Umbraco.Web.PublishedModels.Image]?.Value(
MTS82 Synchronous Drum motor
  • Diameter: 81 mm
  • Gear ratio: 5 - 160
  • Rotational Speed: 19 - 600 RPM
  • Linear Speed: 0,08 - 2,54 m/s
  • Torque: 2,9 - 44 Nm
  • Power: 0,19 / 0,38 kW
Go to product
Umbraco.Core.Models.MediaWithCrops`1[Umbraco.Web.PublishedModels.Image]?.Value(
MTS113 Synchronous Drum motor
  • Diameter: 112 mm
  • Gear ratio: 8 - 160
  • Rotational Speed: 19 - 375 RPM
  • Linear Speed: 0,11 - 2,20 m/s
  • Torque: 4,7 - 44 Nm
  • Power: 0,19 / 0,38 / 0,72 / 1,01 kW
Go to product
Umbraco.Core.Models.MediaWithCrops`1[Umbraco.Web.PublishedModels.Image]?.Value(
MTS115 Synchronous Drum motor
  • Diameter: 112 mm
  • Gear ratio: 10 - 160
  • Rotational Speed: 19 - 300 RPM
  • Linear Speed: 0,11 - 1,77 m/s
  • Torque: 22 - 120 Nm
  • Power: 0,72 / 1,01 kW
Go to product
Umbraco.Core.Models.MediaWithCrops`1[Umbraco.Web.PublishedModels.Image]?.Value(
MTS138 Synchronous Drum motor
  • Diameter: 136 mm
  • Gear ratio: 10 - 160
  • Rotational Speed: 19 - 300 RPM
  • Linear Speed: 0,14 - 2,14 m/s
  • Torque: 22 - 120 Nm
  • Power: 0,72 / 1,01 kW
Go to product
Umbraco.Core.Models.MediaWithCrops`1[Umbraco.Web.PublishedModels.Image]?.Value(
MTD138 Synchronous Drum motor
  • Diameter: 136 mm
  • Gear ratio: 10 - 32
  • Rotational Speed: 75 - 300 RPM
  • Linear Speed: 0,67 - 2,14 m/s
  • Torque: 38 - 120 Nm
  • Power: 1,50 kW
Go to product
Umbraco.Core.Models.MediaWithCrops`1[Umbraco.Web.PublishedModels.Image]?.Value(
MTD139 Synchronous Drum motor
  • Diameter: 136 mm
  • Gear ratio: 32 - 40
  • Rotational Speed: 75 - 94 RPM
  • Linear Speed: 0,53 - 0,67 m/s
  • Torque: 145 - 180 Nm
  • Power: 1,50 kW
Go to product

Request a Quote or talk to an Expert

Support That Stands Out.

Our Application Engineering Team works with you to ensure the MTS62 is configured for your exact machine, application, and production flow.

While others only ask for specs like power and width, we dig deeper—tension, load, usage patterns—because the right setup starts with the right understanding.

And we make the process easy. You’ll save time, prevent costly missteps, and get a tailored drive solution that just works.
