Machine foot HXJCFEHEX150(s)-HXEH56200

Type SEISMIC

Machine foot HXJCFEHEX150(s)-HXEH56200

Article No 2000191

Login or Register as a customer to access solid step files and purchase online



Type HXJE +  HXJCFE

The design and patent protected seismic HXJE + HXJCFE levelling foot is the optimal choice for machinery, equipment, tanks and vessels located in areas subject to earthquakes.

- Simple and fast installation with height-adjustable compact design
- Movable set-up - no concrete molding required
- Total seismic stability through bolted fixation and patented locking mechanism
- Verified through Finite Element Analysis (FEA) and calculated according to New Zealand seismic standard (NZS 4219)
- Seismic anchors chosen and approved by our experienced partner Hilti
- Stainless steel AISI 304/A2, 1.4301. Optional AISI 316/A4, 1.4401

  • Technical specifications
  • Download center
Request offer Request a free sample
  • Technical specifications
    Antislip No

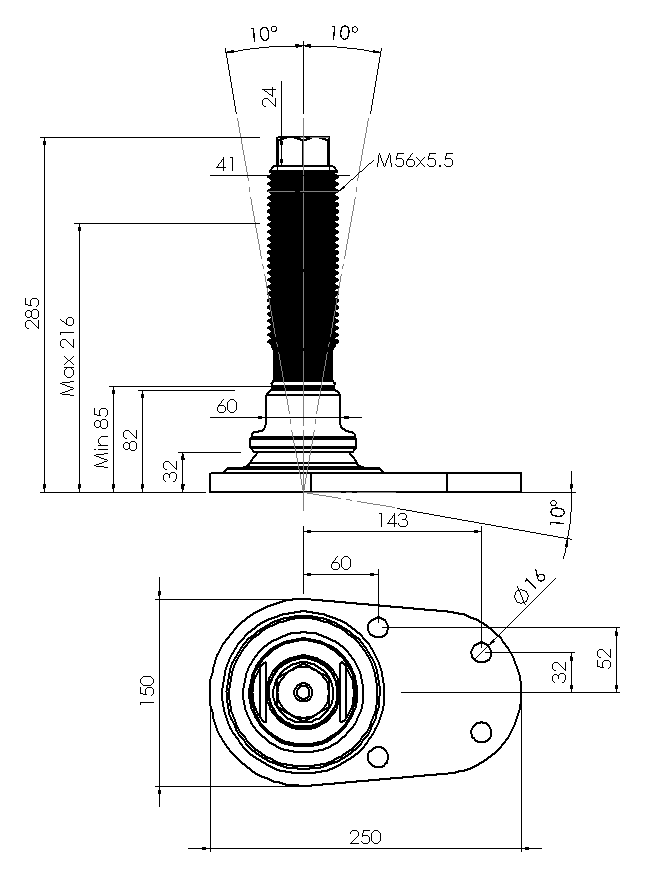

    Drawing no. NGI 155935
    Footplate diameter 150.00
    Footplate shape Round
    Height adjustment 131.00 mm 5.16"
    Height max. 216.00 mm 8.50"
    Height min. 85.00 mm 3.35"
    Height total 285.00 mm 11.22"
    Mounting holes 4.00
    Net weight 9,054.00 g 19.96 lbs
    Nom. load 140,000.00 N 31,473.25 lbs
    Nom. pull 17,000.00 N 3,821.75 lbs
    Sleeve diameter 56.00 mm 2.20"
    Sleeve length 55.00 mm 2.17"
    Spindle length 200.00 mm 7.87"
    Thread diameter 56.00 mm 2.20"
    Thread length 200.00 mm 7.87"
    Thread size M56
    Thread standard Metric C
