Machine foot HXJCFEHEX300(l)-HXEH72250

Type SEISMIC

Machine foot HXJCFEHEX300(l)-HXEH72250

Article No 2000207

Login or Register as a customer to access solid step files and purchase online



Type HXJE +  HXJCFE

The design and patent protected seismic HXJE + HXJCFE levelling foot is the optimal choice for machinery, equipment, tanks and vessels located in areas subject to earthquakes.

- Simple and fast installation with height-adjustable compact design
- Movable set-up - no concrete molding required
- Total seismic stability through bolted fixation and patented locking mechanism
- Verified through Finite Element Analysis (FEA) and calculated according to New Zealand seismic standard (NZS 4219)
- Seismic anchors chosen and approved by our experienced partner Hilti
- Stainless steel AISI 304/A2, 1.4301. Optional AISI 316/A4, 1.4401

  • Technical specifications
  • Download center
Request offer Request a free sample
  • Technical specifications
    Antislip No

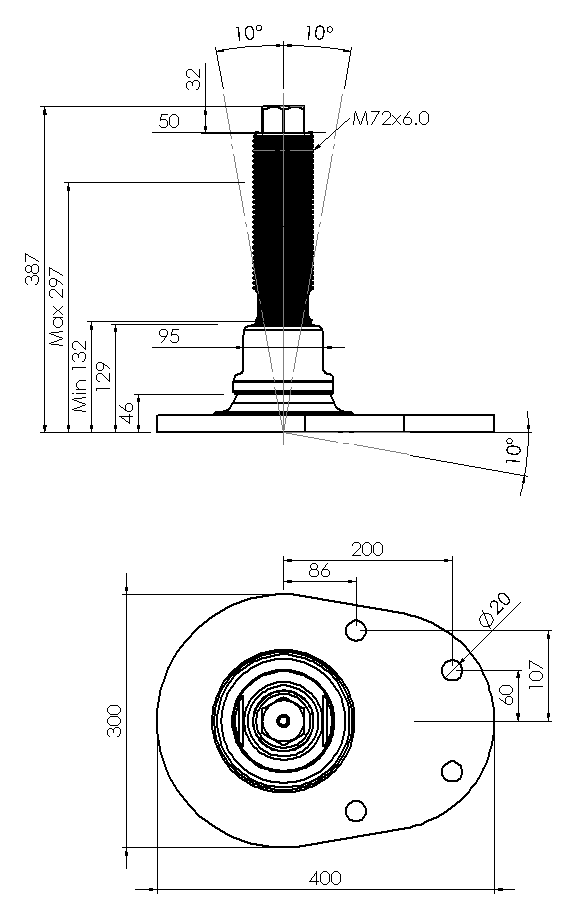

    Drawing no. NGI 155947
    Footplate diameter 300.00
    Footplate shape Round
    Height adjustment 165.00 mm 6.50"
    Height max. 297.00 mm 11.69"
    Height min. 132.00 mm 5.20"
    Height total 387.00 mm 15.24"
    Mounting holes 4.00
    Net weight 29,500.00 g 65.04 lbs
    Nom. load 327,000.00 N 73,512.52 lbs
    Nom. pull 39,000.00 N 8,767.55 lbs
    Sleeve diameter 72.00 mm 2.83"
    Sleeve length 55.00 mm 2.17"
    Spindle length 255.00 mm 10.04"
    Thread diameter 72.00 mm 2.83"
    Thread length 255.00 mm 10.04"
    Thread size M72x6.00
    Thread standard Metric C
    Specifications

  • Download center

    Technical drawings
    Technical drawings without background Technical drawings with background
