Machine foot HXJCFEHEX300(l)-HXEH80250

Type SEISMIC

Machine foot HXJCFEHEX300(l)-HXEH80250

Article No 2000209

Login or Register as a customer to access solid step files and purchase online



Type HXJE +  HXJCFE

The design and patent protected seismic HXJE + HXJCFE levelling foot is the optimal choice for machinery, equipment, tanks and vessels located in areas subject to earthquakes.

- Simple and fast installation with height-adjustable compact design
- Movable set-up - no concrete molding required
- Total seismic stability through bolted fixation and patented locking mechanism
- Verified through Finite Element Analysis (FEA) and calculated according to New Zealand seismic standard (NZS 4219)
- Seismic anchors chosen and approved by our experienced partner Hilti
- Stainless steel AISI 304/A2, 1.4301. Optional AISI 316/A4, 1.4401

  • Technical specifications
  • Download center
Request offer Request a free sample
  • Technical specifications
    Antislip No
    Drawing no. NGI 155951
    Footplate diameter 300.00
    Footplate shape Round
    Height adjustment 151.00 mm 5.94"
    Height max. 283.00 mm 11.14"
    Height min. 132.00 mm 5.20"
    Height total 387.00 mm 15.24"
    Mounting holes 4.00
    Net weight 31,153.00 g 68.68 lbs
    Nom. load 432,000.00 N 97,117.46 lbs
    Nom. pull 39,000.00 N 8,767.55 lbs
    Sleeve diameter 80.00 mm 3.15"
    Sleeve length 55.00 mm 2.17"
    Spindle length 255.00 mm 10.04"
    Thread diameter 80.00 mm 3.15"
    Thread length 255.00 mm 10.04"
    Thread size M80x6.00
    Thread standard Metric C
    Specifications

  • Download center

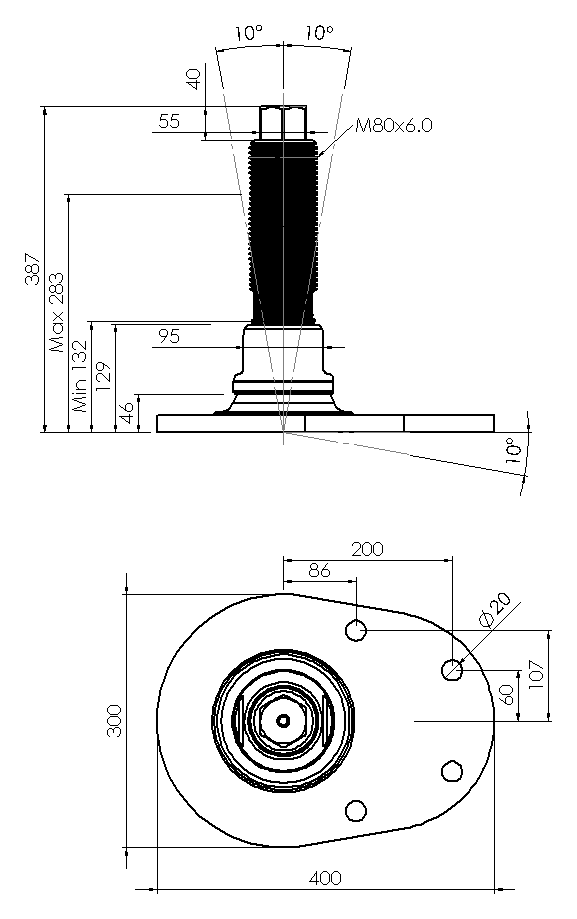

    Technical drawings
    Technical drawings without background Technical drawings with background
